Flagship Product

Consistent Grading,
Operator Independent

Digital Diamond Measurement & LED Bin Sorting

What is Dimbox? DimBox is an AI-powered digital diamond measurement and sorting machine. It replaces subjective manual grading with objective machine vision, securing ±10 micron repeatability on every stone.

See How It Works View Our Models
Dimbox - Smart Diamond Measurement Machine

DimBox sorting a batch with automatic Excel logging.

The Real Value

Beyond Just Measurement

DimBox is designed to solve the three biggest bottlenecks on the factory floor.

Unwavering Consistency

Get the exact same measurement on every stone, every time, regardless of which operator is running the machine. ±10 micron repeatability guarantees standardisation.

De-skill The Shop Floor

Stop depending on one or two expert graders. Any operator can run DimBox with minimal training, freeing up your skilled workforce for higher-value tasks.

Local Audit Trail

Every stone measured is automatically logged to an Excel file on your machine. Keep a permanent, transparent record for packing lists and customer audits.

Operator Workflow

As Simple As 1-2-3-4

A foolproof, automated loop that anyone can master in minutes.

1
Place Stone

The operator places the diamond on the inspection stage.

2
Machine Measures

DimBox instantly captures dimensions with ±10 micron repeatability.

3
LED Indicates Bin

A smart LED light illuminates the correct sorting bin for the operator.

4
Auto-Log

The measurement is automatically recorded to the local Excel file.

Key Features

Everything Your Production Floor Needs

Engineered for high performance, ease of operation, and ±10 micron repeatability.

Precision Geometry

Perform automatic diamond length width angle detection and sides size detection with advanced computer vision algorithms.

Micron Level Accuracy

Achieve ±10 micron level accuracy. The dimensional measurement is highly reliable and consistent.

Fast Processing

Verify 800-1000 diamonds per hour with ultra fast detection technology, ensuring rapid and high-volume sorting.

Automated Report Generation

Generate automated report generation & real-time analytics instantly to reduce manual effort on the shop floor.

Single-Click Collet Creation

Export collet profiles in multiple formats with just one click - saving hours of manual profiling work.

Smart LED Bin Sorting

Arduino driven LED box lights the correct sized bin in real time - rugged, low maintenance sorting mechanism that any operator can use.

Compact Tabletop Design

A space-saving smart design with a stable metal stand that is fully portable and easy to install anywhere.

Industrial-Grade Build

High structural stability featuring a robust, low-maintenance hardware design built for continuous industrial use.

Enhanced Production Efficiency

Delivers exceptional reliability & uptime to keep your production line running without interruptions.

Significant Manual Work Reduction

Dramatically minimizes manual measurement efforts, reducing labor costs and human errors.

Same Day Shop Floor Support

Get prompt, same day shop floor support from our technical specialists to keep your operations running smoothly.

User-Friendly Interface

Designed with an intuitive touchscreen operation that requires minimal training for your operators.

Shape-by-Shape Analysis

What Dimbox Measures in Every Diamond

Select any diamond shape below to see exactly what Dimbox checks — shown in simple, easy-to-understand terms.

Min Diameter Max Diameter
Round Brilliant

The most popular diamond shape. Dimbox checks that the diamond is perfectly round with consistent diameter from every direction.

What Dimbox Checks
1
Max Diameter
Maximum diameter measured across the circular profile
2
Min Diameter
Minimum diameter measured across the circular profile
3
Ratio
Max to Min diameter ratio (defines roundness; standard is 1.00)
Length Width
Marquise Cut

Boat-shaped diamond with pointed tips at both ends. Dimbox verifies that both tips are perfectly aligned and the stone is balanced left-to-right.

What Dimbox Checks
1
Length
Horizontal size of the diamond from left to right
2
Width
Vertical size of the diamond from top to bottom
3
Ratio
Length to width ratio (defines elongation)
Width Length
Pear Shape

A teardrop shape — round at the bottom, pointed at the top. Dimbox checks that the point is perfectly centred and both shoulders are equal in size.

What Dimbox Checks
1
Length
Vertical size of the diamond from top to bottom
2
Width
Horizontal size of the diamond from left to right
3
Ratio
Length to width ratio (defines elongation and shape profile)
Width Length
Oval Cut

An elongated version of the round shape. Dimbox ensures both ends curve identically and the diamond is not lopsided on any side.

What Dimbox Checks
1
Length
Vertical size of the diamond from top to bottom
2
Width
Horizontal size of the diamond from left to right
3
Ratio
Length to width ratio (defines elongation)
Width Length S1 S2 S3 S4
Cushion Cut

A square or slightly rectangular shape with soft rounded corners — like a cushion. Dimbox checks size, proportions, and that all four corners curve equally.

What Dimbox Checks
1
Length
Horizontal size of the diamond from left to right
2
Width
Vertical size of the diamond from top to bottom
3
Ratio
Length to width ratio (defines square or rectangular profile)
4
All Sides
Checks the symmetry of all four side lengths (S1, S2, S3, S4)
Width Length S1 S2 S3 S4 A1 A2 A3 A4
Princess Cut

A perfectly square diamond with sharp, crisp corners. Dimbox checks that all four corners are exactly 90° and none of them are chipped or uneven.

What Dimbox Checks
1
Length
Horizontal size of the diamond from left to right
2
Width
Vertical size of the diamond from top to bottom
3
Ratio
Length to width ratio (perfect square is 1.00)
4
All Sides
Checks the symmetry of all four side lengths (S1, S2, S3, S4)
5
All Angles
Measures all four corner angles (A1, A2, A3, A4) to ensure exact 90° corners
Width Length S1 S2 S3 S4 A1 A2 A3 A4
Emerald Cut

A rectangular shape with clipped (cut-off) corners. Dimbox measures the clipped corners at two different angles and checks they are all consistent.

What Dimbox Checks
1
Length
Horizontal size of the diamond from left to right
2
Width
Vertical size of the diamond from top to bottom
3
Ratio
Length to width ratio (defines elongation)
4
All Sides
Checks the symmetry of all four side lengths (S1, S2, S3, S4)
5
All Angles
Measures all four corner angles (A1, A2, A3, A4) for consistent clipped corner cuts
Width Length S1 S2 S3 S4 A1 A2 A3 A4
Baguette

A long, narrow rectangular stone with straight sides. Dimbox ensures the width is perfectly consistent from top to bottom and all four corners are sharp 90° angles.

What Dimbox Checks
1
Length
Horizontal size of the diamond from left to right
2
Width
Vertical size of the diamond from top to bottom
3
Ratio
Length to width ratio (defines elongation)
4
All Sides
Checks the symmetry of all four side lengths (S1, S2, S3, S4)
5
All Angles
Measures all four corner angles (A1, A2, A3, A4) to ensure exact 90° corners
Length L Max W Min W S1 S2 S3 S4 A1 A2 A3 A4
Tapered Baguette

A variation of the baguette where one end is intentionally wider than the other. Dimbox measures both ends precisely to determine the exact degree of tapering.

What Dimbox Checks
1
Max W
Width of the wider end
2
Min W
Width of the narrower end
3
Length L
Full length measured through the center line
4
All Sides
Checks the symmetry of all four side lengths (S1, S2, S3, S4)
5
All Angles
Measures all four corner angles (A1, A2, A3, A4) to confirm the exact taper shape
Custom
Shape
Support
±10µm
Measurement
Precision
Microsecond
Result Per
Stone
Auto
Report
Generated

Applications

Dimbox is ideal for measuring and analyzing:

  • Diamonds
  • Gemstones & Pearls
  • Polki stones
  • Fancy cut stones
  • Precision micro components

Why Choose Dimbox

Tangible floor-level benefits:

  • Drastically faster stone measurement cycles
  • Consistent, non-subjective accurate grading results
  • Eliminates manual measurement fatigue and error
  • Simplifies complex custom stone profiling for collet layout
  • Boosts overall production yield and floor efficiency
Compare Models

Dimbox Product Comparison

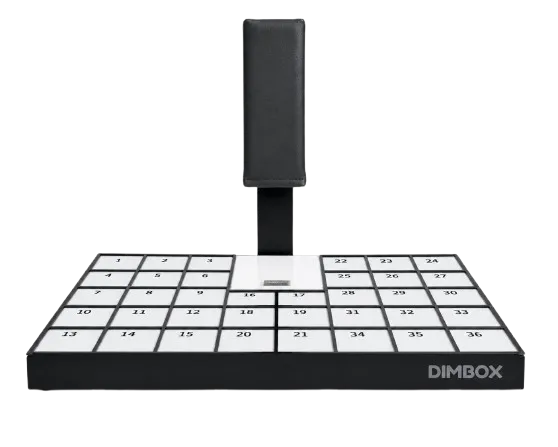

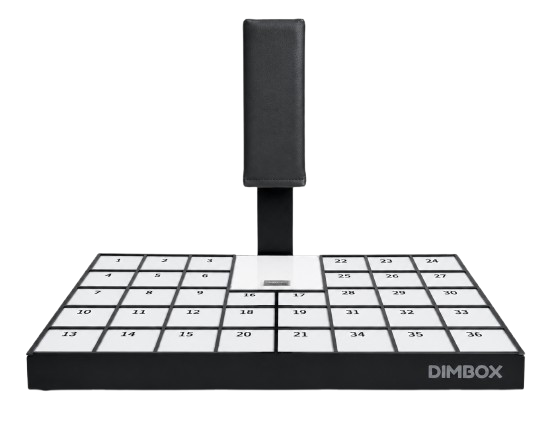

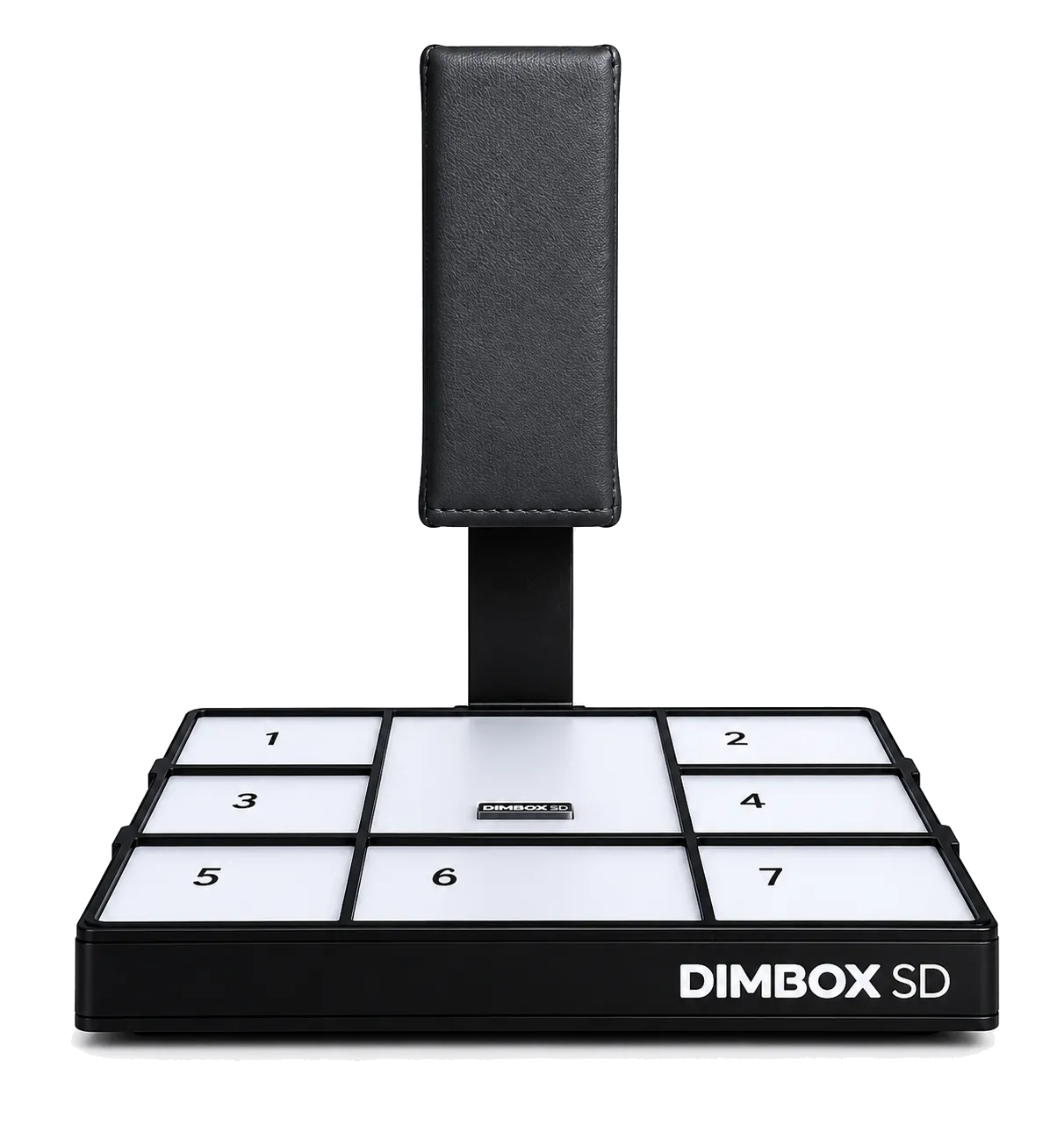

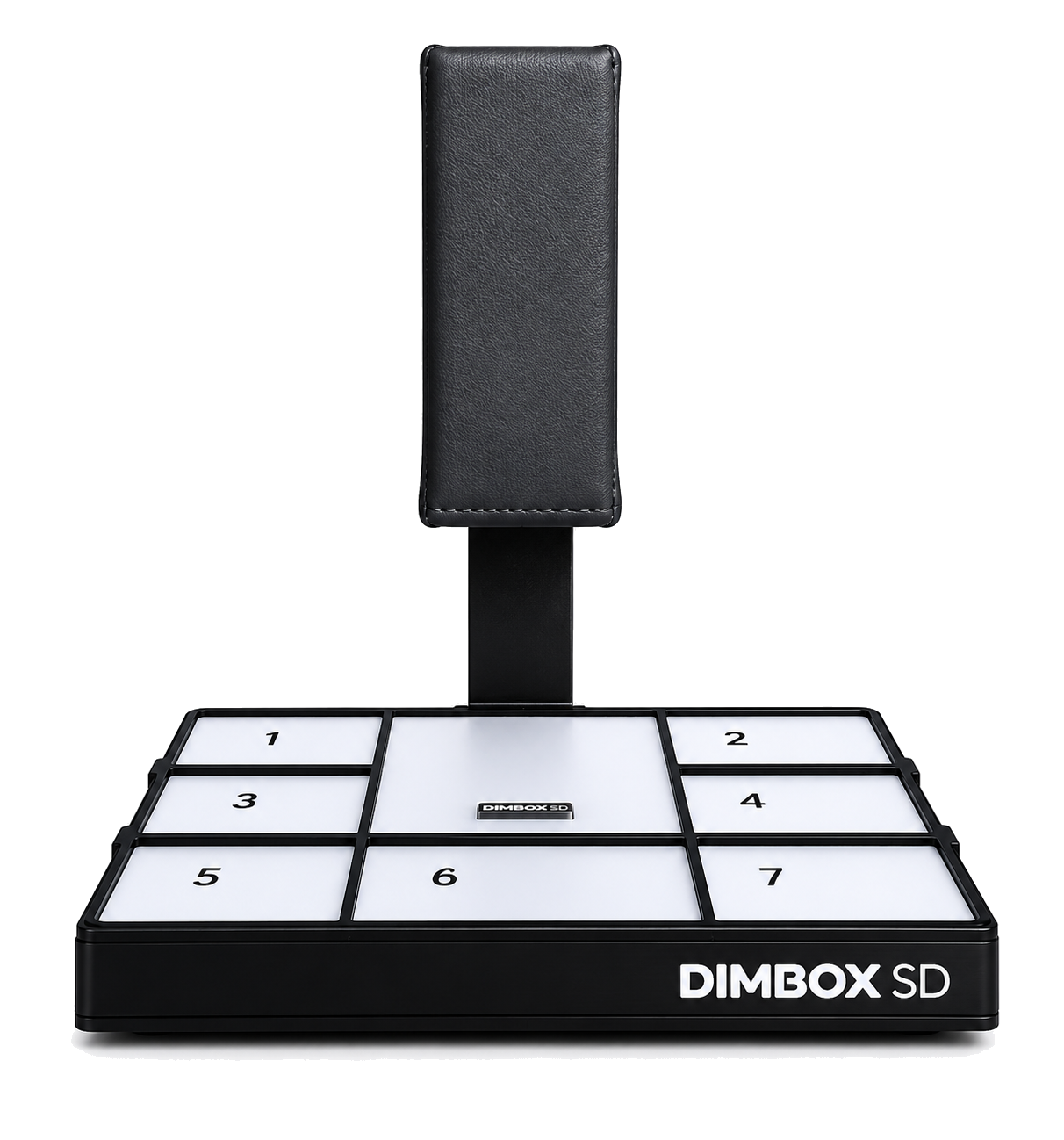

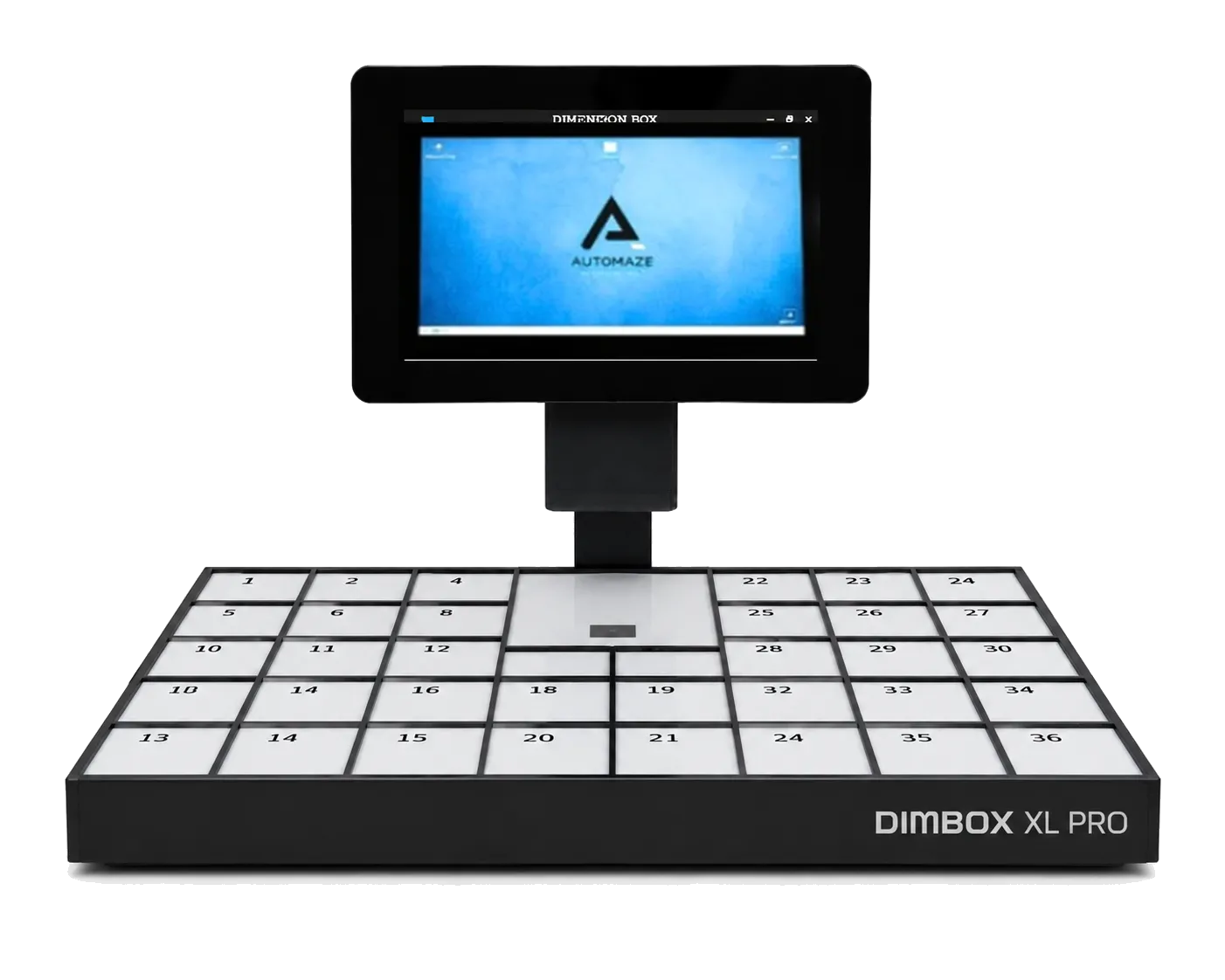

FEATURE Dimbox SD Entry Level Diamond Measurement Machine DimBox SD Dimbox SD Pro Smart Diamond Measurement Machine DimBox SD Pro Dimbox XL High Capacity Diamond Measurement Machine DimBox XL Dimbox XL Pro Enterprise Diamond Measurement Machine DimBox XL Pro
Box Ranges Supported 7 Ranges 7 Ranges 36 Ranges 36 Ranges
Built-in Display
External PC Required
Single-Click Collet Creation
Ultra-Fast Processing
Micron-Level Accuracy
Automated Reports
User-Friendly Interface
Space-Saving Design
Best For
Cost-conscious users with existing workstations
Most production environments
Higher-capacity operations with existing PCs
High-volume facilities needing maximum flexibility
Entry Level Most Popular High Volume Enterprise
Enquire Enquire Enquire Enquire
Speak with a product specialist: +91 79902 58842
Precision Engineering

Micron-Level Optical Accuracy

Built with industrial computer vision lenses and precision optical mechatronics for operator-independent consistency.

±10 μm
Optical Repeatability

Guarantees standard measurement output across all shifts and operators.

800 - 1000
Stones Per Hour

High-speed automated camera capture and LED bin guidance.

1-Click
Single-Click Collet

Create and configure custom stone measurement collets in seconds.

Auto-Excel
Audit-Ready Reports

Instant Excel file creation for packing lists and customer verification.

Customer Reviews

Trusted By Diamond Manufacturers

Hear how Dimbox is transforming factory floors across Surat and Gujarat.

"Dimbox transformed our sorting department. We sort 900+ stones per hour with absolute ±10 micron accuracy. Saved 40% time and deskilled our operators!"

R
Rajesh Patel
Production Manager • Katargam, Surat

"The automated Excel report generation feature is a game changer for our packing lists and exports. Zero manual entry error and full audit trail."

K
Ketan Shah
Factory Director • Surat Diamond Hub

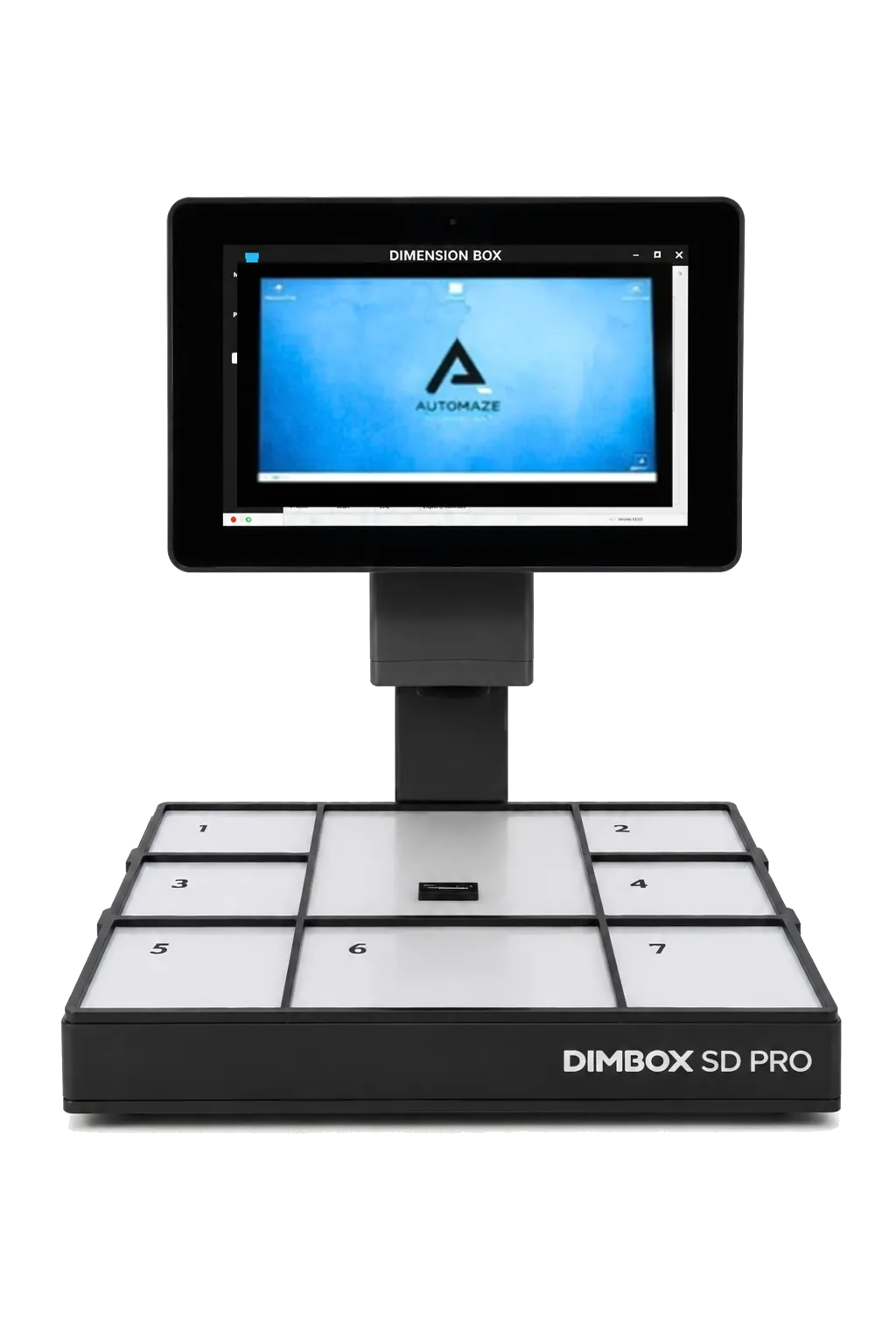

"Dimbox SD Pro with built-in display simplified our daily floor workflow. Excellent machine quality and prompt shop-floor support from Automaze team."

V
Vikram Mehta
Unit Head • Varachha, Surat
Book Machine Demo

Schedule Your Live Factory Demo

Book an in-person shop-floor trial in Surat or request a personalized virtual video call demo with our application engineers.

Your details are confidential. We will confirm your demo schedule via phone/WhatsApp within 2 hours.

Common Questions

Frequently Asked Questions

1. What shapes can the DimBox measure?
DimBox can measure Round, Marquise, Pear, Oval, Cushion, Princess, Emerald, Baguette, and Tapered Baguette shapes.
2. How fast does the DimBox operate?
It can verify 800-1000 diamonds per hour, depending on the operator and stone size.
3. What is the measurement accuracy?
The DimBox delivers ±10 micron repeatability for consistent and reliable results across operators.
4. Do I need an external PC?
The DimBox SD and XL models require an external PC, while the Pro models feature a built-in display and internal processing for an all-in-one setup.
5. Does the machine generate reports automatically?
Yes, every stone measured is automatically logged to a local Excel file on your machine, creating a permanent audit trail.
6. How does the sorting bin system work?
A smart Arduino-driven LED light instantly illuminates the correct sorting bin based on the measured dimensions, visually guiding the operator.
7. Can it measure lab-grown diamonds?
Yes, it can measure the physical dimensions of any diamond or gemstone, but please note it does not differentiate between natural and lab-grown stones.
8. What kind of support do you offer?
We provide same-day shop floor support from our technical specialists to ensure your production line keeps running smoothly without extended downtime.
How does the Dimbox machine look, and what is its size?
Dimbox is a compact, sleek tabletop machine designed to fit easily into modern diamond and jewellery workspaces. Weighing approximately 5–7 kg, it is lightweight, space-efficient, and occupies roughly the footprint of a laptop, making it easy to place on a standard workbench or desk.
How does smart measuring and sorting work?
Simply place a diamond in the measurement area, Dimbox digitally scans and measures the required dimensions, and based on predefined criteria, the corresponding sorting bin is indicated with an LED light so the operator can place the stone in the correct category.
What are the main features and accuracy of Dimbox?
Dimbox offers fast digital measurement with accuracy of up to 0.01 mm (10 microns), can process approximately 800–1,000 diamonds per hour depending on the workflow, and measures parameters such as length, width, ratio, angles, sides, and diameter while also supporting automated Excel reporting.
What diamond shapes does it support?
It supports all fancy shapes including tapered, trapezoid, heart, halfmoon, round, baguette, cushion, emerald, oval, marquise, and many more shapes.
Which top companies are using Dimbox?
Dimbox is trusted by leading diamond companies including Kiran Diamonds, HVK International, KKG Diamonds, SRK Diamonds, Laxmi Diamond, Mittal Diamonds, Ashwin Diamonds, Romil Diamonds, and many more, helping them streamline measurement workflows, reduce manual effort, improve consistency, and achieve higher productivity.
What are the core benefits for my business?
Dimbox reduces manual measurement, minimizes human error, saves valuable production time, and delivers consistent, repeatable results to support a faster and more efficient diamond manufacturing workflow.
What models of Dimbox are available?
Dimbox is available in four models—SD, SD Pro, XL, and XL Pro—designed to suit different stone types, measurement requirements, workflow needs, and production volumes.
